Plot survey comparison results

Plots the results of compare_surveys() as a time series of indices (type = "index"), a scatter plot of survey vs compiled indices (type = "scatter"), or a spatial prediction-difference map (type = "spatial", on a ggOceanMaps::basemap()).

Usage

# S3 method for class 'sdmTMB_survey_comparison'
plot(
  x,
  type = "index",
  index_divisor = NULL,
  unit = NA,
  viridis = FALSE,
  annotate_fit = TRUE,
  spatial_response = "mean_pr_diff",
  fill_prefix = NULL,
  transform_color_scale = TRUE,
  limit_rounding = 10,
  break_rounding = 5,
  base_size = 11,
  ...
)

Arguments

x: An object of class sdmTMB_survey_comparison.
type: Character. "index" (default), "scatter" or "spatial".
index_divisor: Optional numeric divisor applied to index values.
unit: Character. Unit label. If NA, "Index value" is used.
viridis: Logical. Use the viridis palette for survey series? Default FALSE.
annotate_fit: Logical. For type = "scatter", annotate each survey's panel-free regression line with its fitted equation and R², coloured to match that survey? Default TRUE.
spatial_response: Character. Column mapped in spatial plots: "mean", "pr_mean" or "mean_pr_diff". Default "mean_pr_diff". See Details.
fill_prefix: Character. Prefix for the spatial-plot fill legend title (type = "spatial"), e.g. "Biomass density" or "CPUE". If NULL (default), the legend title is "Percent anomaly"; otherwise paste(fill_prefix, "percent anomaly", sep = "\n"). Surveys don't necessarily share a response variable, so this isn't inferred automatically.
transform_color_scale: Logical. Apply a signed square-root colour scale for spatial plots? Default TRUE.
limit_rounding, break_rounding: Numeric rounding for map fill limits and breaks. Defaults 10 and 5.
base_size: Numeric. Base font size. Default 11.
...: Currently ignored.

Value

A ggplot object (type = "index"/"scatter") or a cowplot grid (type = "spatial").

Details

For type = "spatial", each grid cell is compared between a survey's fitted model and the compiled reference model, for every year they share, on the response scale (i.e. predict(..., type = "response"), e.g. density rather than log density): diff = est - ref_est and pr_diff = 100 * diff / ref_est (percent). spatial_response selects how these per-year values are summarised across years into the single value mapped for each cell:

"mean": mean(diff) — the average absolute difference, in response units. Useful for the raw magnitude of disagreement, but not comparable across cells with very different baseline abundance.
"pr_mean": mean(pr_diff) — the average of the yearly percent differences. Because each year is divided by that year's own (possibly small) reference value, a handful of low-abundance years/cells can dominate this average with large percentage swings even when the absolute difference is small.
"mean_pr_diff" (default): 100 * mean(diff) / mean(ref_est) — the percent difference between the across-year mean predictions (a ratio of means, not a mean of ratios). This is usually the more robust percent-based summary, since a cell's overall multi-year baseline is used in the denominator instead of each individual year's value.

Author

Mikko Vihtakari

Examples

# \donttest{
data(sebastes)
sub <- subset(sebastes, cruiseseries %in% c("EcoS", "WinterS") & year >= 2020)
compiled_mesh <- sdmTMB::make_mesh(sub, c("X", "Y"), cutoff = 50)
# `biomass` (raw catch), not `density`, is the response: `density` is
# already swept_area-normalised, so pairing it with the swept_area offset
# below would double-correct for effort.
compiled_model <- sdmTMB::sdmTMB(
  biomass ~ 0 + as.factor(year), data = sub, time = "year",
  mesh = compiled_mesh, family = sdmTMB::tweedie(), spatiotemporal = "off",
  offset = log(sub$swept_area)
)
full_region <- make_survey_prediction_region(sub, crs = 32633, concavity = 5)
full_grid <- sdmTMB::replicate_df(
  make_prediction_grid(full_region, resolution = 20), "year", unique(sub$year)
)
# swept_area is in square nautical miles, so cell area must be too: convert
# the 20 km grid resolution to nautical miles before squaring.
cell_area <- (20 / 1.852)^2
compiled_index <- sdmTMB::get_index_split(
  compiled_model, newdata = full_grid, area = cell_area, nsplit = 3, silent = TRUE
)
#> Bias correction is turned off.
#> It is recommended to turn this on for final inference.
#> Bias correction is turned off.
#> It is recommended to turn this on for final inference.
#> Bias correction is turned off.
#> It is recommended to turn this on for final inference.
sc <- compare_surveys(
  data = sub, compiled_index = compiled_index, compiled_model = compiled_model,
  surveys = c("EcoS", "WinterS"), newdata = full_grid, object_crs = 32633,
  mesh_cutoff = 50, offset_col = "swept_area", area = cell_area
)
#> ⠙ Fitting 2 survey models
#> ✔ Fitting 2 survey models [14ms]
#>
#> ✔ EcoS: model OK
#> ✔ WinterS: model OK
#> ⠙ Building 2 survey prediction grids
#> ✔ Building 2 survey prediction grids [5ms]
#>
#> ⠙ Computing 2 survey indices
#> ✔ Computing 2 survey indices [3ms]
#>
#> ✔ EcoS: index done
#> ✔ WinterS: index done
#> ⠙ Computing spatial prediction differences
#> ✔ Computing spatial prediction differences [4ms]
#>
#> ✔ EcoS: spatial diff done
#> ✔ WinterS: spatial diff done

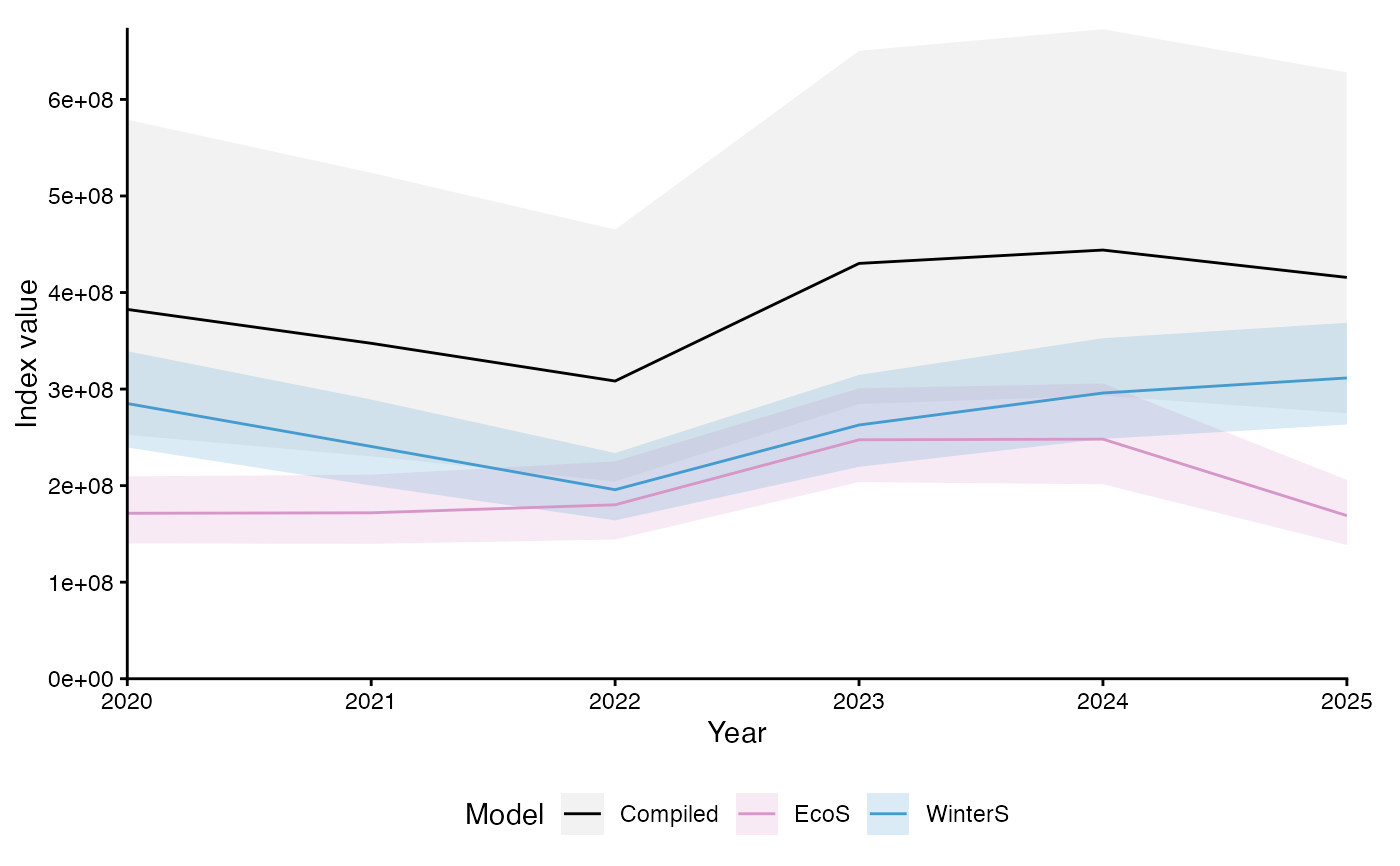

plot(sc)                                              # scaled index time series

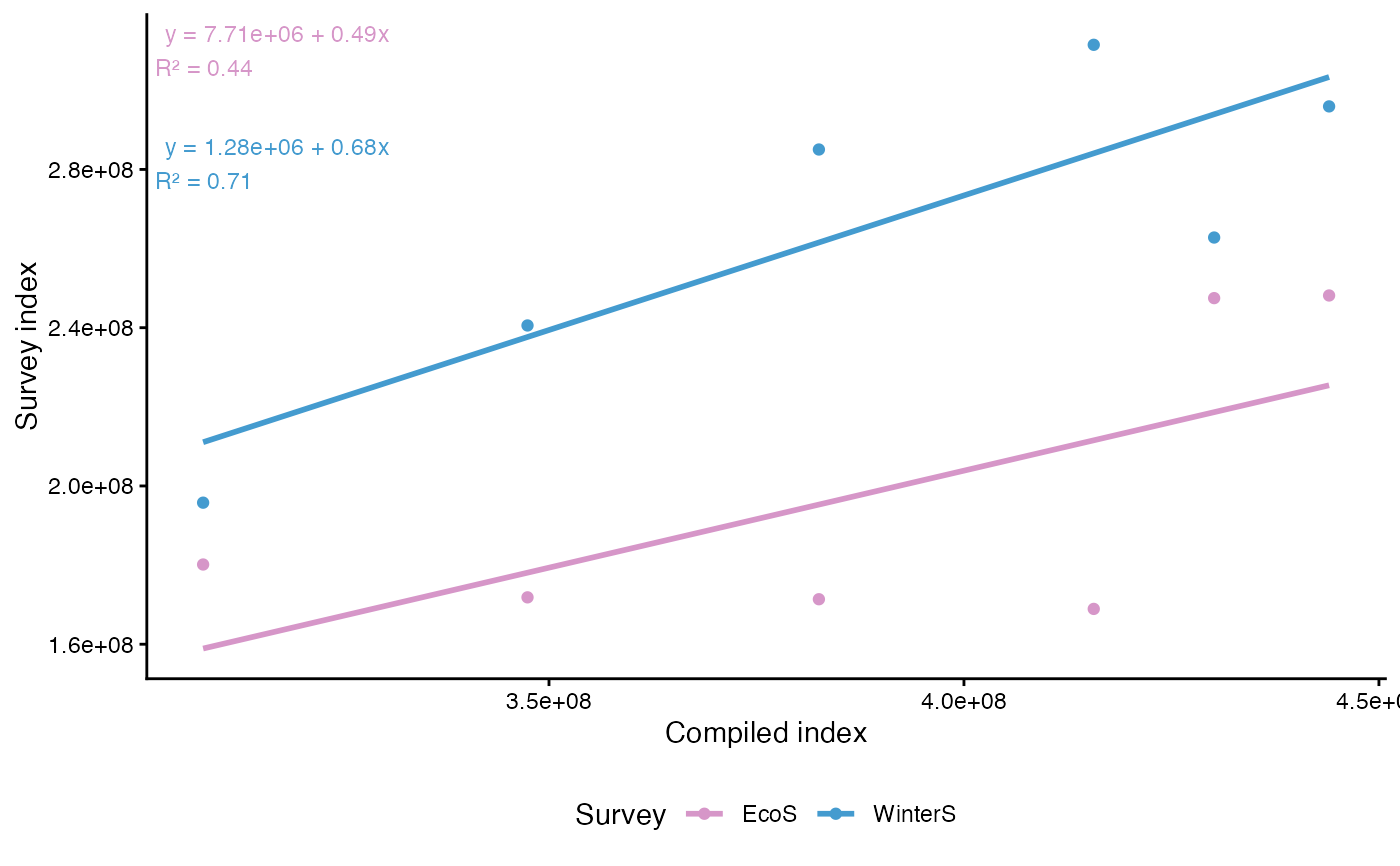

plot(sc, type = "scatter", annotate_fit = TRUE)       # survey vs compiled

plot(sc, type = "spatial", fill_prefix = "Biomass density") # prediction differences

# }
