Map spatial or spatiotemporal random fields

Source: R/plot.R
plot_random_field.Rd

Maps the spatial (omega) or spatiotemporal (epsilon) random field columns returned by predict(fit, newdata = ...) on a ggOceanMaps::basemap(), using a diverging colour scale. Handles delta models (multiple field columns) by faceting.

Usage

plot_random_field(
  pred,
  crs,
  field = c("omega", "epsilon"),
  time_col = "year",
  xy_cols = c("X", "Y"),
  coord_multiplier = 1000,
  base_size = 11
)

Arguments

pred

A prediction data frame from predict(fit, newdata = ...).

crs

Coordinate reference system (projected, in metres).

field

Character. "omega" (spatial, default) or "epsilon" (spatiotemporal).

time_col

Character. Time column for spatiotemporal fields. Default "year".

xy_cols

Character vector of the coordinate columns. Default c("X", "Y").

coord_multiplier

Numeric factor to convert coordinates to CRS units. Default 1000.

base_size

Numeric. Base font size. Default 11.

Value

A ggplot object.

See also

ggOceanMaps::basemap()

Author

Mikko Vihtakari

Examples

# \donttest{
mesh <- sdmTMB::make_mesh(sdmTMB::pcod, c("X", "Y"), cutoff = 20)
m <- sdmTMB::sdmTMB(
  density ~ 0 + as.factor(year), data = sdmTMB::pcod, time = "year",
  mesh = mesh, family = sdmTMB::tweedie()
)
nd <- sdmTMB::replicate_df(sdmTMB::qcs_grid, "year", unique(sdmTMB::pcod$year))
pred <- predict(m, newdata = nd)

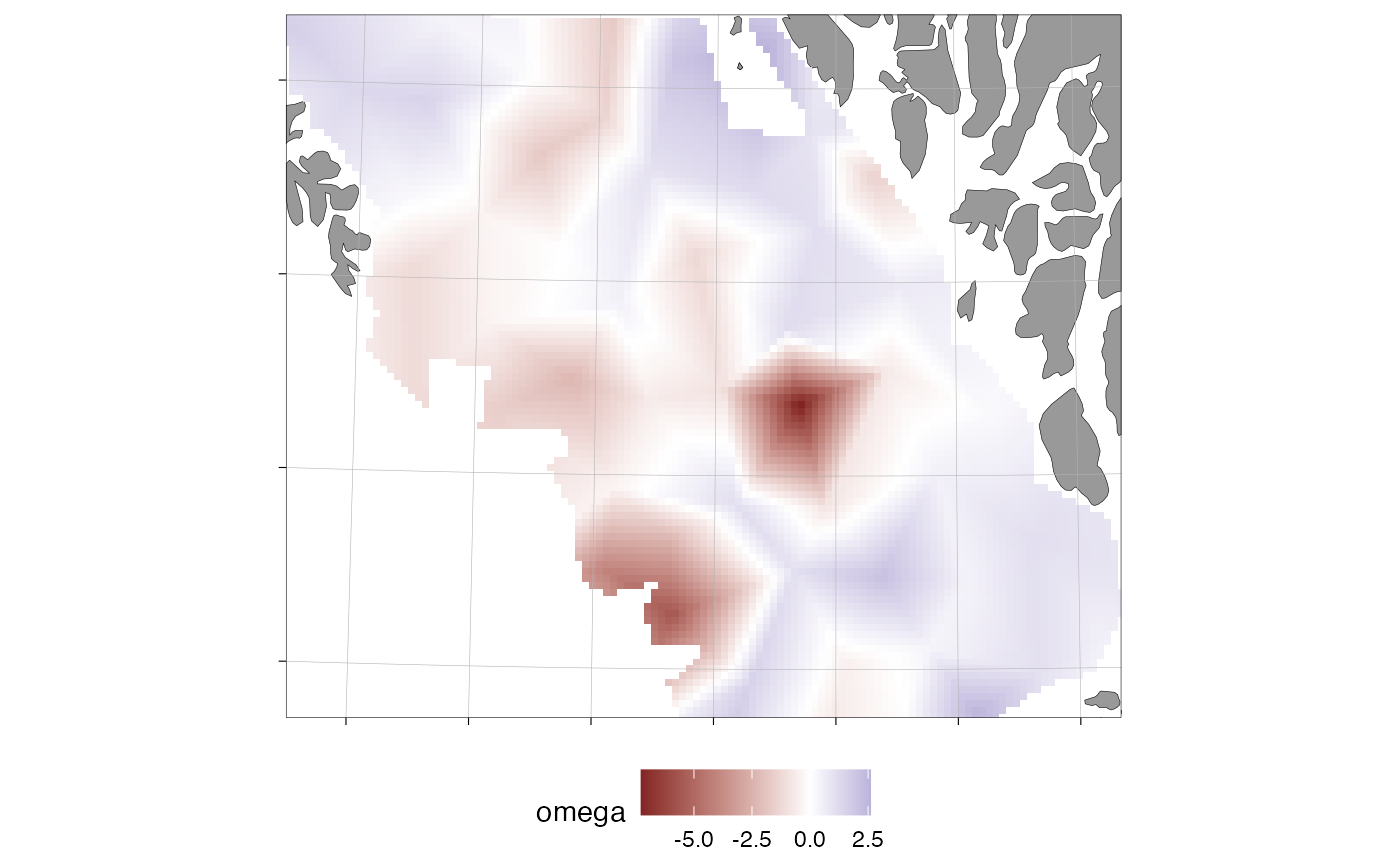

plot_random_field(pred, crs = 32609, field = "omega")

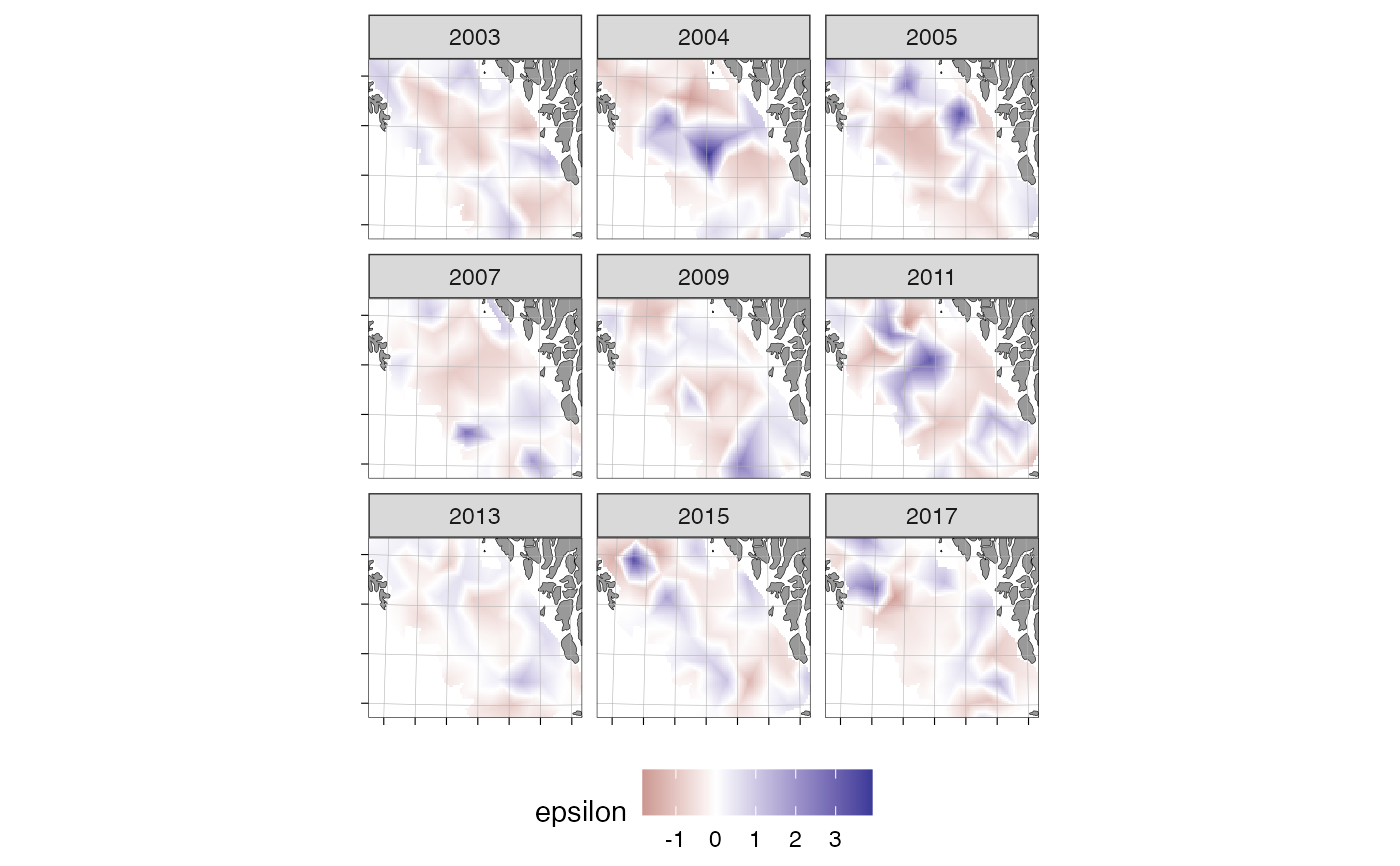

plot_random_field(pred, crs = 32609, field = "epsilon")

# }
