Plots the results of compare_models() as either a time series of survey indices (type = "index") or spatial maps of prediction differences (type = "spatial", rendered on a ggOceanMaps::basemap()).

Usage

# S3 method for class 'sdmTMB_model_comparison'
plot(
  x,
  type = "index",
  index_divisor = NULL,
  unit = NA,
  mohn = FALSE,
  viridis = FALSE,
  spatial_response = "mean_pr_diff",
  fill_prefix = NULL,
  transform_color_scale = TRUE,
  limit_rounding = 10,
  break_rounding = 5,
  base_size = 11,
  ...
)

Arguments

x

An object of class sdmTMB_model_comparison.

type

Character. "index" (default) or "spatial".

index_divisor

Optional numeric divisor applied to index values.

unit

Character. Unit label for axes. If NA, "Index value" is used.

mohn

Logical. Annotate the index plot with the mean terminal-year relative difference from the reference (computed with mohns_rho())? Default FALSE. Only applies when type = "index". All series share the same final year here, so this is not a retrospective Mohn's rho.

viridis

Logical. Use the viridis palette for model groups? Default FALSE (a fixed colour vector).

spatial_response

Character. Column mapped in spatial plots: one of "mean", "pr_mean" or "mean_pr_diff". Default "mean_pr_diff". See Details.

fill_prefix

Character. Prefix for the spatial-plot fill legend title (type = "spatial"), e.g. "Biomass density" or "CPUE". If NULL (default), the legend title is "Percent anomaly"; otherwise paste(fill_prefix, "percent anomaly", sep = "\n"). Models don't necessarily share a response variable, so this isn't inferred automatically.

transform_color_scale

Logical. Apply a signed square-root colour scale for spatial plots? Default TRUE.

limit_rounding, break_rounding

Numeric rounding for map fill limits and breaks. Defaults 10 and 5.

base_size

Numeric. Base font size. Default 11.

...

Currently ignored.

Value

A ggplot object (type = "index") or a cowplot grid (type = "spatial").

Details

For type = "spatial", each grid cell is compared between a fitted model and the reference model for every year they share, on the response scale (i.e. predict(..., type = "response"), e.g. density rather than log density): diff = est - ref_est and pr_diff = 100 * diff / ref_est (percent). spatial_response selects how these per-year values are summarised across years into the single value mapped for each cell:

  • "mean": mean(diff) — the average absolute difference, in response units. Useful for the raw magnitude of disagreement, but not comparable across cells with very different baseline abundance.

  • "pr_mean": mean(pr_diff) — the average of the yearly percent differences. Because each year is divided by that year's own (possibly small) reference value, a handful of low-abundance years/cells can dominate this average with large percentage swings even when the absolute difference is small.

  • "mean_pr_diff" (default): 100 * mean(diff) / mean(ref_est) — the percent difference between the across-year mean predictions (a ratio of means, not a mean of ratios). This is usually the more robust percent-based summary, since a cell's overall multi-year baseline is used in the denominator instead of each individual year's value.

See also

compare_models()

Author

Mikko Vihtakari

Examples

# \donttest{
mesh <- sdmTMB::make_mesh(sdmTMB::pcod, c("X", "Y"), cutoff = 20)
m1 <- sdmTMB::sdmTMB(
  data = sdmTMB::pcod, formula = density ~ 0 + as.factor(year),
  time = "year", mesh = mesh, family = sdmTMB::tweedie(link = "log")
)
m2 <- sdmTMB::sdmTMB(
  data = sdmTMB::pcod, formula = density ~ 0 + as.factor(year) + depth_scaled,
  time = "year", mesh = mesh, family = sdmTMB::tweedie(link = "log")
)
nd <- sdmTMB::replicate_df(sdmTMB::qcs_grid, "year", unique(sdmTMB::pcod$year))
x <- compare_models(m1, m2, newdata = nd, object_crs = 32609)
#> ℹ `ln_tau_O` is an internal parameter affecting `sigma_O`
#> ℹ `sigma_O` is the spatial standard deviation
#> ℹ `ln_tau_E` is an internal parameter affecting `sigma_E`
#> ℹ `sigma_E` is the spatiotemporal standard deviation
#> ℹ `ln_kappa` is an internal parameter affecting `range`
#> ℹ `range` is the distance at which data are effectively independent

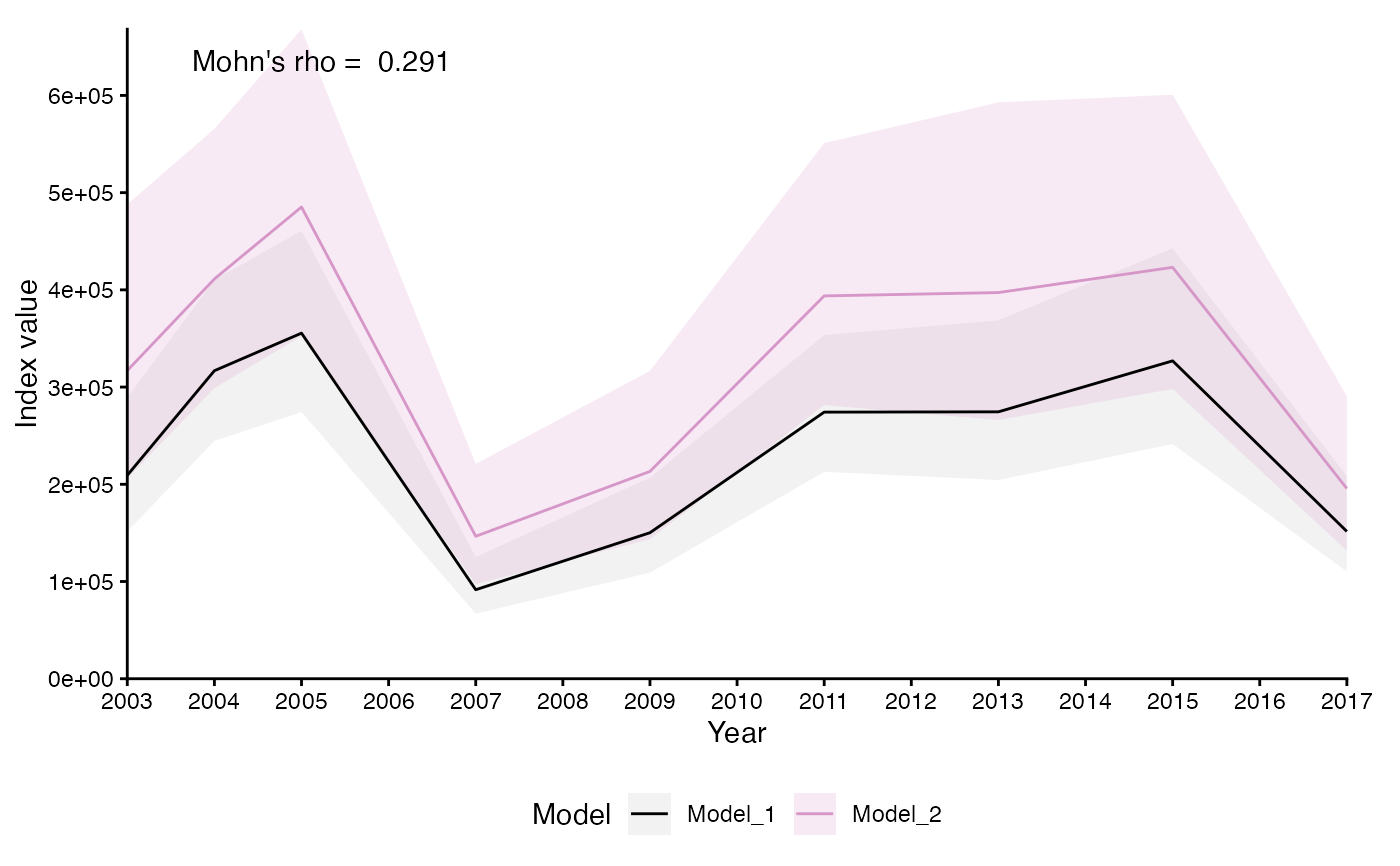

plot(x, mohn = TRUE)

plot(x, type = "spatial", fill_prefix = "Biomass density")

# }
